Features
The pneumatic bollard has been designed to control access to a site with a high level of security ,guaranteeing pedestrian access but blocking the area to road traffic. Its main features are:
A. Manufactured from iron with painting or powder coasting.
B. Automatic pneumatic control.
C. Very high impact strength.
D. Height above ground: 600mm.
E. With different color high light LED and glistening film(optional).

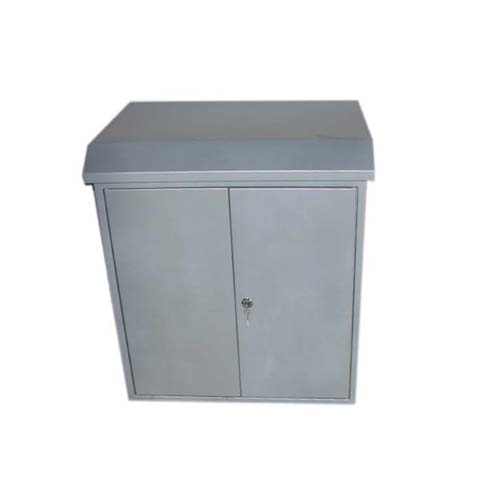

F. Control box include pneumatic pumps, electronic board, pipes, one control box can control 1~3 bollards.
Specification
*Operation unit:pneumatic
*Material:iron with powder coasting.
*Weight:74KG (168mm)
*Diameter:168mm or 220mmm or 275mm
*Surface treatment:polishing or spraying
*The length of above ground part :600mm
*The depth of under ground part:900mm
*The up and down time:3~5 seconds(adjustable)
*Reflective tape:5cm height around the bollard
*Working noise:<60db
*Length of lines and pipelines:10m
*Protection level:IP67
*Working voltage :AC220V
*Working current:<1.5A
*Working Temperature:-5~70¡æ
