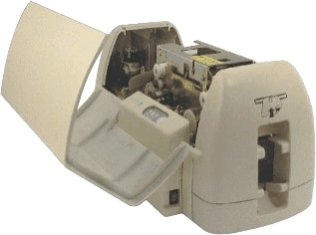

Digi 70
Colour or Monochrome Card Personalization System
DIGI 70 is a compact and high-speed card printer, suitable for any application in the field of loyalty cards, access control badges and ID cards.
The DIGI 70 is extremely low-noise and easy to use, able to print up to 130 cards/hour with full-colours dye sublimation or monochrome printing technology and optional magnetic stripe and smart-card reading and encoding. |
|
| |
TECHNICAL SHEET - DIGI 70 |
|
| |
| |
FEATURES
. Full-colours dye sublimation printing
or monochrome thermal printing
. Print resolution 300 dpi
. Edge to edge printing
. Single-card front feeding
. Automatic input feeder 100 cards
. Output hopper up to 50 cards
. Throughput:
- full-colours (YMCKO) up to 130 cards/hour
- monochrome up to 700 cards/hour |
TECHNICAL SPECIFICATIONS
. Monochrome resin: 1500 cards/roll
. Monochrome colors:
black, red, blue, gold, silver 1000/1500 cards/roll
. 2 panels (black + overlay KO): 800 cards/roll
. Dye sublimation with the following colours:
4 panels (YMCO): 350 cards/roll
5 panels (YMCKO): 200 cards/roll
6 panels (YMCKOK): 200 cards/roll |
| |
OPTIONS
. Magnetic stripe reading and encoding HI-CO/LO-CO
(tracks 1,2,3) ISO 7811
. Smart-card contact station - EMV compliant
. Smart-card controller board - EMV compliant
. Bar code printing (by software)
CARD SPECIFICATIONS
. Material: PVC, ABS, PET
. Dimensions: ISO 7810
. Thickness: from 0.5 mm to 0.83 mm
|
 |
| |
SOFTWARE
. Drivers for Parallel Centronics device:
windows 95/98/ME/2000/XP and NT 4.0
. Drivers for USB device:
windows 95/98/ME/2000/XP |
|
| |
|
|
| |
|
|
|
| |
|
