Access Control System > Integrated

Digi-703

Features
1.This card reader with standard wiegand output signal formats,compatible with other access control system.
2.Build-in beeper and LED, display the working saturation directly.
3.Could be installed on EU/Asian back box.
4.Build-in beeper and LED, display the working saturation directly. 5. Black or white color optional.

Specification

Electronic:
*Rated voltage:DC 9-15V
*Rated current:>200mA
*Sustaining card's types: DR-703 read Mifare card 5~8cm
*Output signal:WG26/WG34
*Input interface: LED control*2/Beeper control*1/Hold on*1
*LED: Double color LED*1

Model:
*Exterior size: 9.5CM*9.5CM*2.0CM
*Installation:EU/Asian standard back box

Environment:
*Temperature -25C~70C
*Humidity <90%

Availability Type

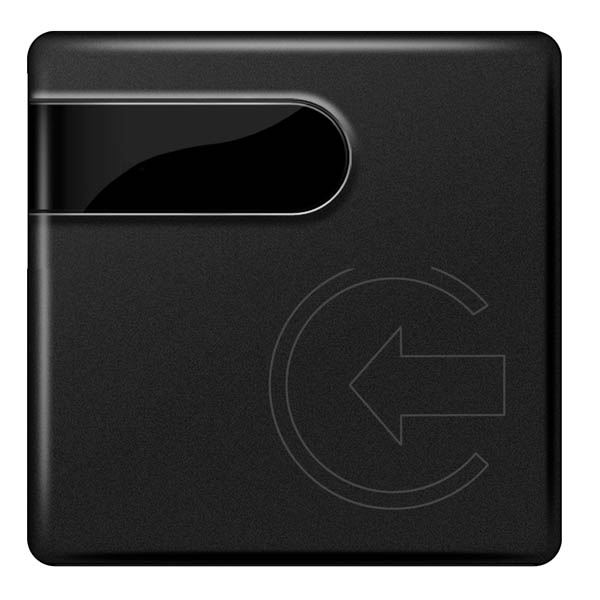

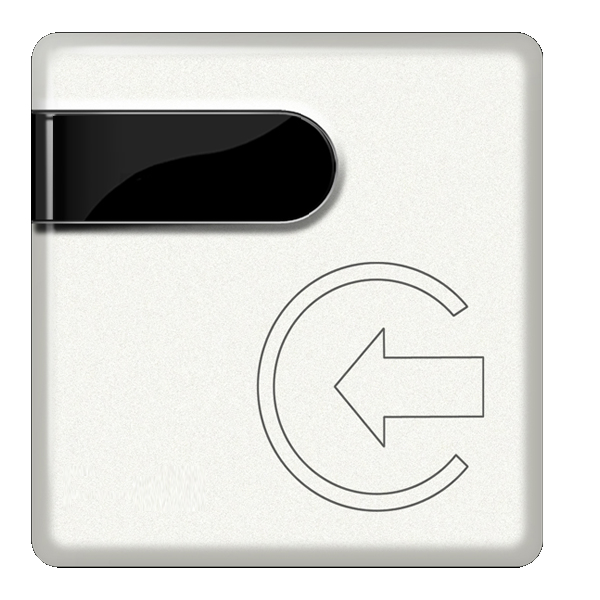

White	Black
