Features
1.This card reader with a keypad to input password.
2.With standard Wiegand output signal and several keypad formats, compatible with other access control system.
3.Could be installed on EU/Asian back box.

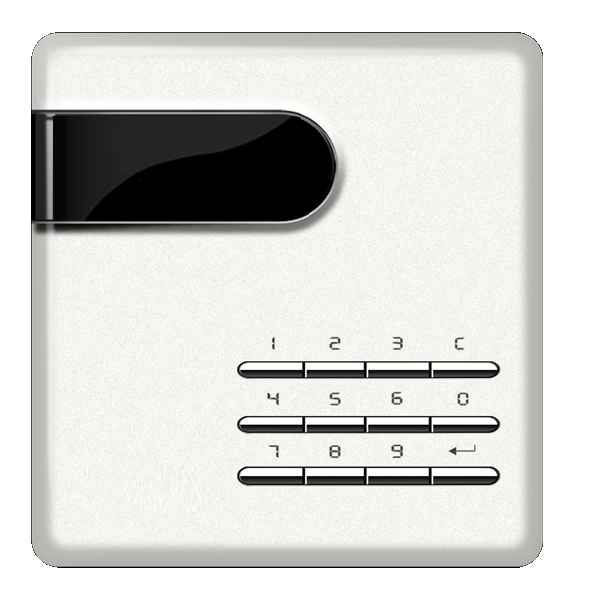

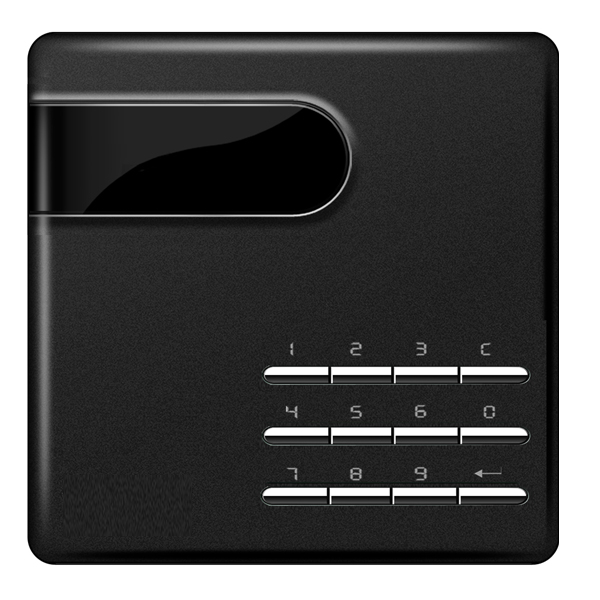

4.Build-in beeper and LED, display the working saturation directly. 5. Black or white color optional.
Specification
Electronic:
*Rated voltage:DC 9-15V
*Rated current:>200mA
*Sustaining card's types: DR-703 read Mifare card 5~8cm
*Output signal:WG26/WG34
*Input interface: LED control*2/Beeper control*1/Hold on*1
*LED: Double color LED*1
*Keypad:12
*Keypad Output Format:4bit/8bit, programmed for other
Model:
*Exterior size: 9.5CM*9.5CM*2.0CM
*Installation:EU/Asian standard back box
